T-Rack is the final project me and my teammate created for Creative Electronics. The purpose of this assignment was to combine the different electronics we had used in previous assignments.
T-Rack is a smart coat rack that measures the outside temperature and determines what coat you should put on. The coat rack will automatically turn around to present the chosen coat. When your coat is ready to be removed from the coat rack, a light will turn on.
I was really proud of this product as I was not that familiar with using electronics before. However, I do realize that my teammate was already familiar with electronics and that might have limited my learning. This project mainly falls within the areas T&R because we actually realized our concept and also MD&C because we had to make some calculations to make everything work.
T-Rack without coats

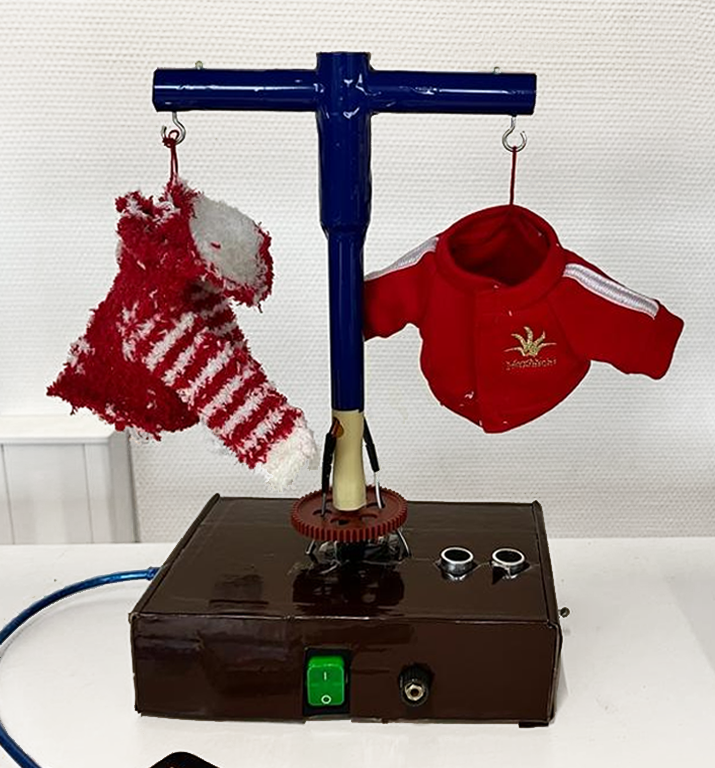

T-Rack with coats

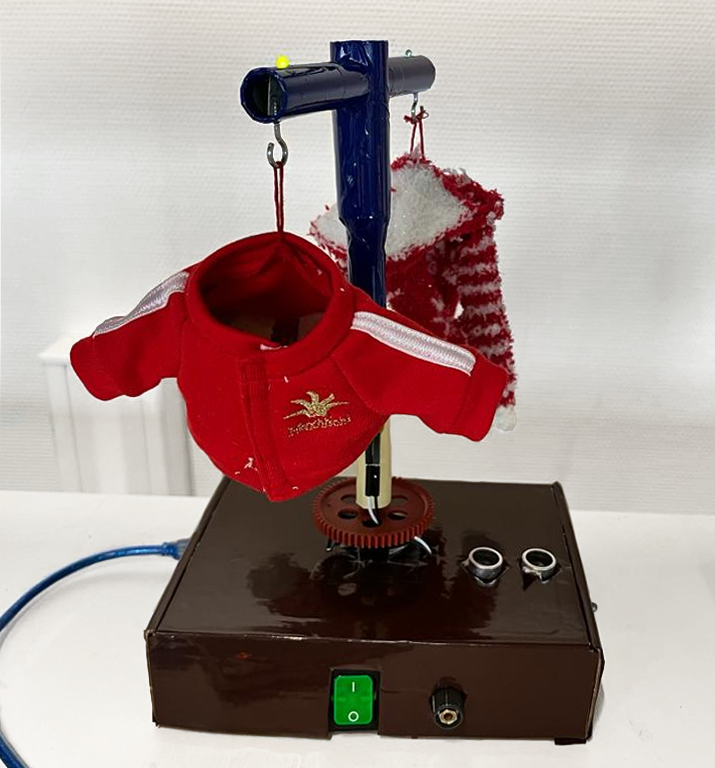

T-Rack presenting the summer jacket

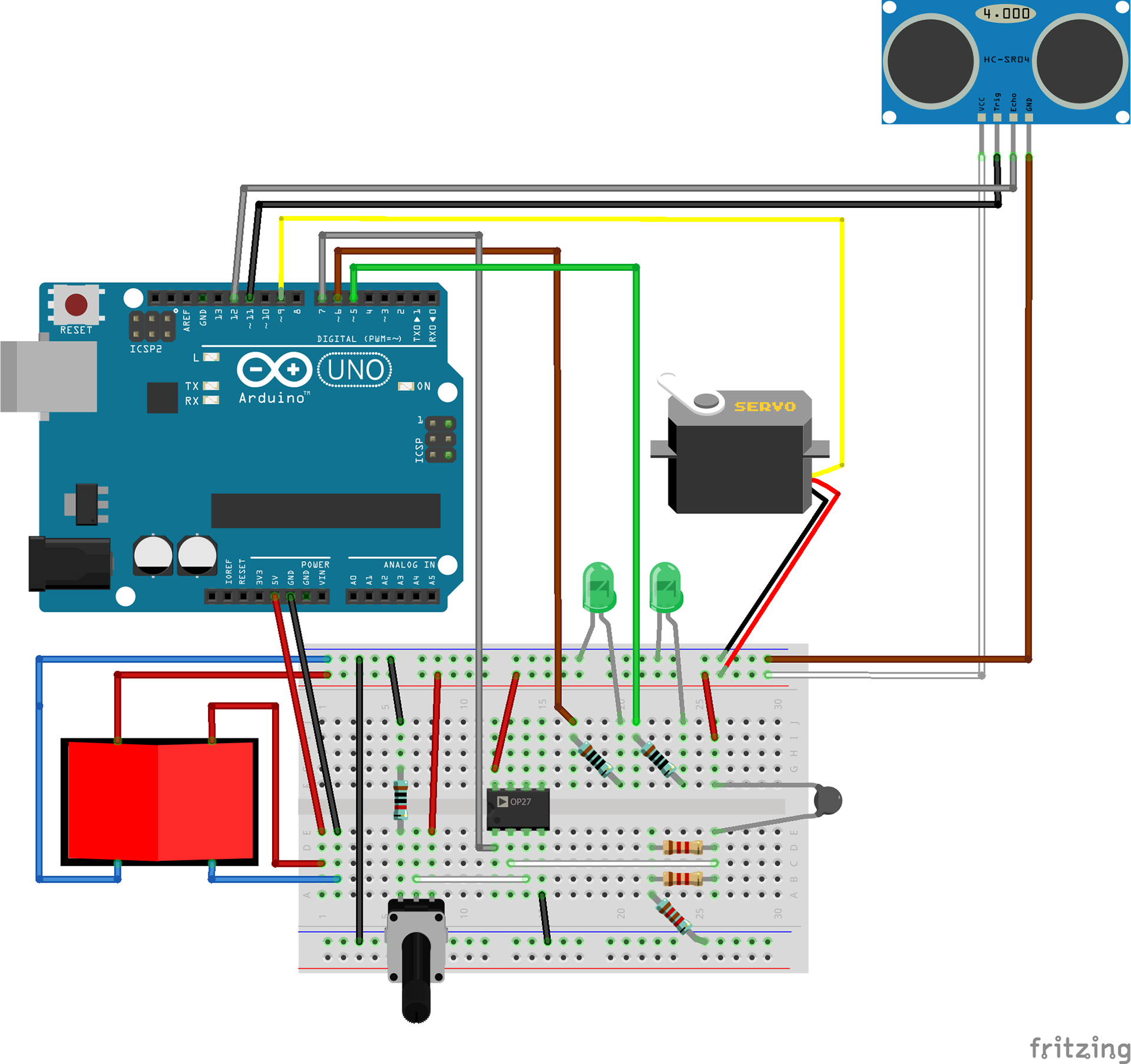

Electronics set-up

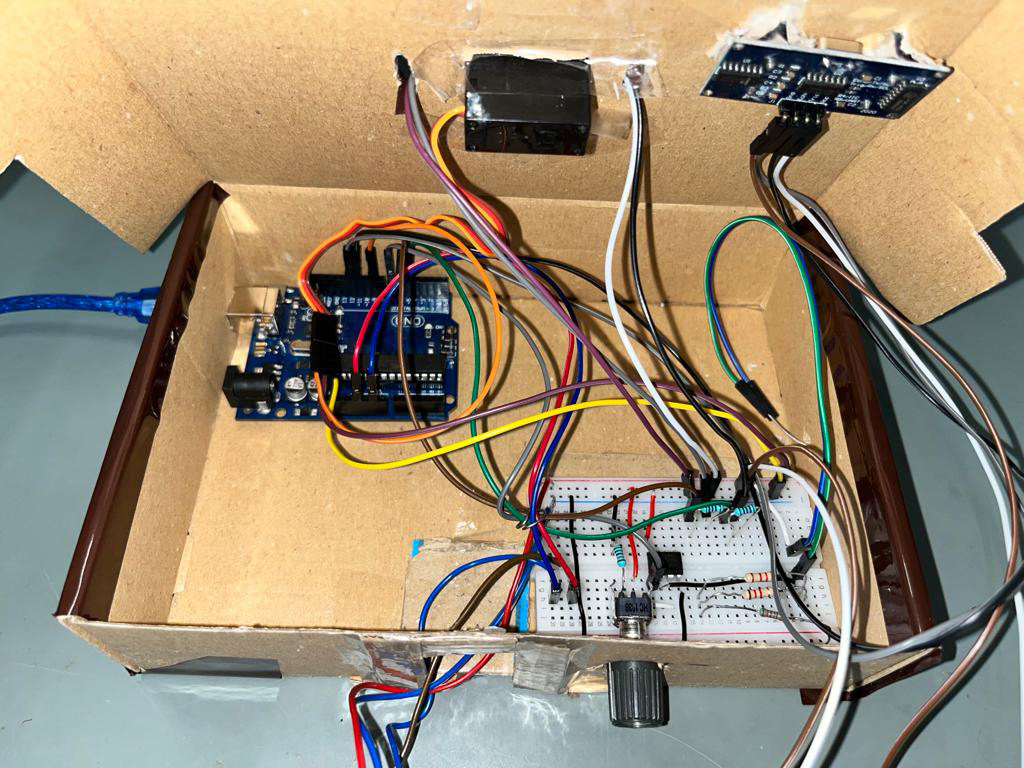

Electronics inside the box
Electronics inside the box

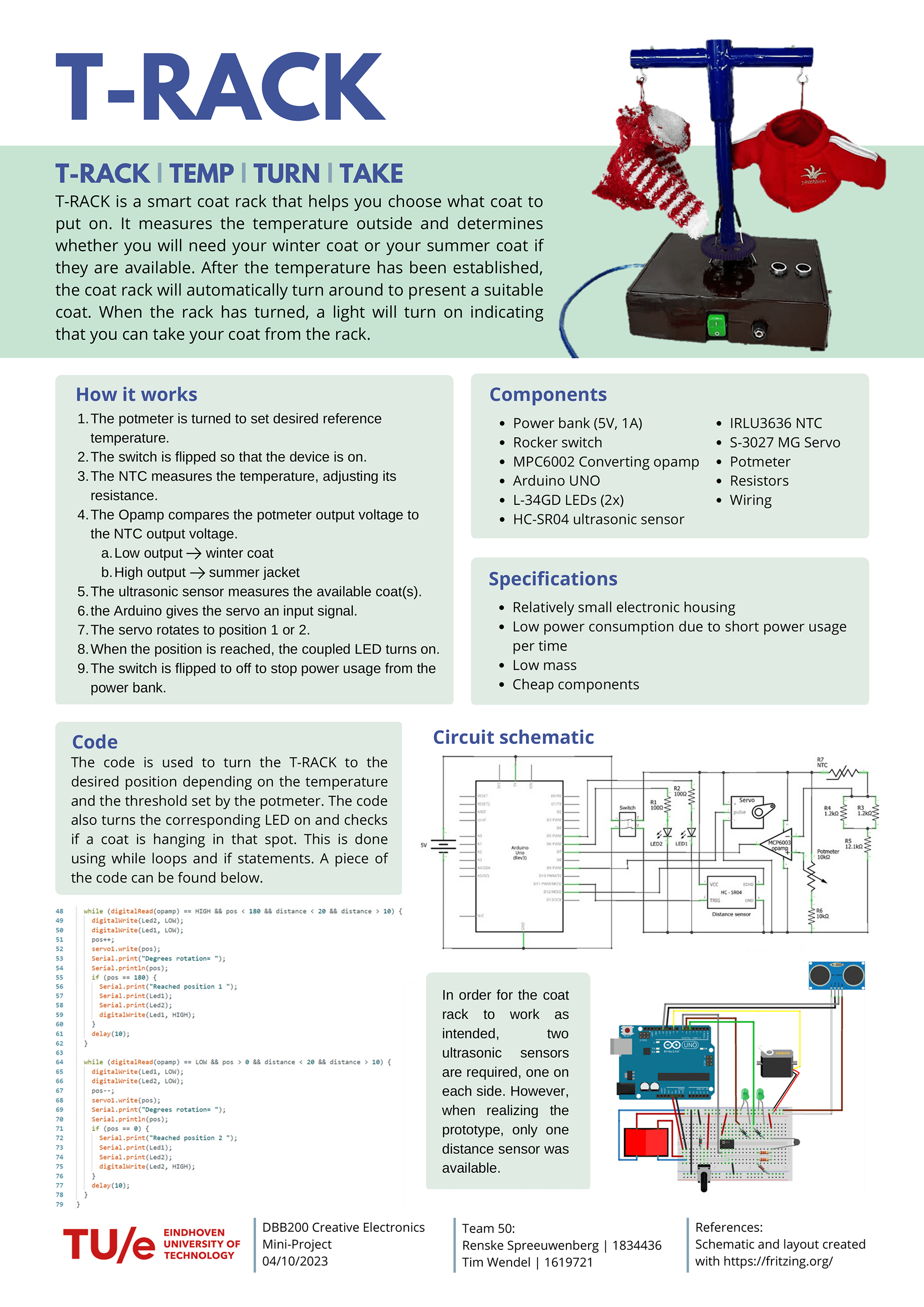

Poster for the mini-project
